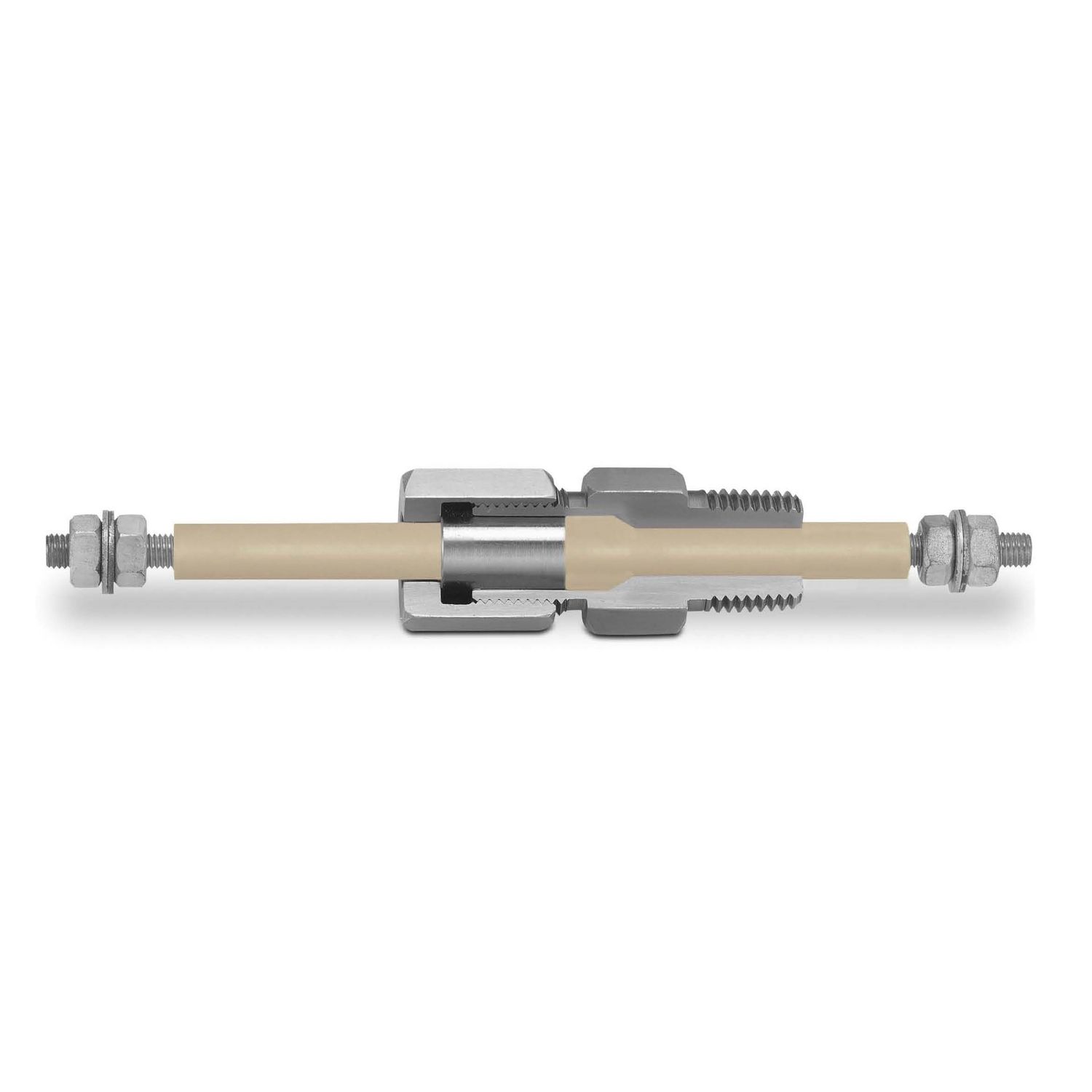

Electrode sealed feedthrough
HEGPK – 125 – B - SS
Conax Technologies
Conax Technologies HEGPK electrical power sealed feedthroughs electrically and/or thermally isolate single electrodes, tubes or temperature sensors for use in vacuum furnaces, liquid level probes, transformers, environmental chambers, power leads and more. These bare electrical sealed feedthroughs also seal against gases and liquids and resist electrode (also known as conductor) movement under pressure. The Conax HEGPK Gland differs from the Conax EGT gland in that the single piece insulator/sealant is manufactured from PEEK, which is recognized as one of the highest performing engineered thermoplastic materials currently available.
Conductors are available in Copper, Nickel and 303SST. Use of Nickel rather than Copper is recommended in oxidizing atmospheres. Custom conductors, such as nickel-plated copper, are also available. Please consult factory.
Temperature Range: 0¡ÆF to 480¡ÆF
Pressure Range: Vacuum to 7,700 PSIG(531 bar) - see Pressure Ratings Chart
Voltage 8000 VDC
Amperage to 200 amps
Supplied with or without conductor
Conductors are available in Copper, Nickel and 303SST. Use of Nickel rather than Copper is recommended in oxidizing atmospheres. Custom conductors, such as nickel-plated copper, are also available. Please consult factory.
Temperature Range: 0¡ÆF to 480¡ÆF
Pressure Range: Vacuum to 7,700 PSIG(531 bar) - see Pressure Ratings Chart
Voltage 8000 VDC
Amperage to 200 amps
Supplied with or without conductor
