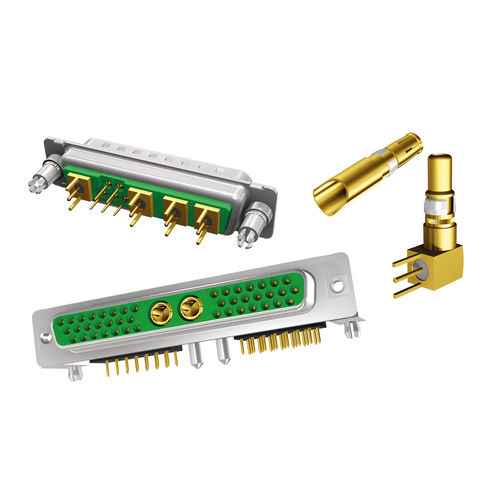

D-SUB Combination connector D-SUB Combination connectors offer the possibility to equip a proven design with new functionality. This is done by using different contact types without having to change the shape, size and installation dimensions of the connector itself. By using high-current contacts, the power supply of the device can be realized without an additional interface for the power supply. High-voltage contacts allow operating voltages of up to 2.8 kV. Fast signal transmission over shielded coaxial lines is achieved with the use of special coaxial contacts. A choice can be made between the Combination D-SUB, Combination D-SUB High Density and Combination D-SUB Dual Port series. In all variants, different combinations with signal, high current, high voltage or coaxial contacts are possible. The combination of different contact types offers interesting possibilities to save space and costs in the interface area. The connectors are always supplied with signal contacts, except for the crimp version.
