- 1-axis accelerometer
- Connection Technology Center Inc.

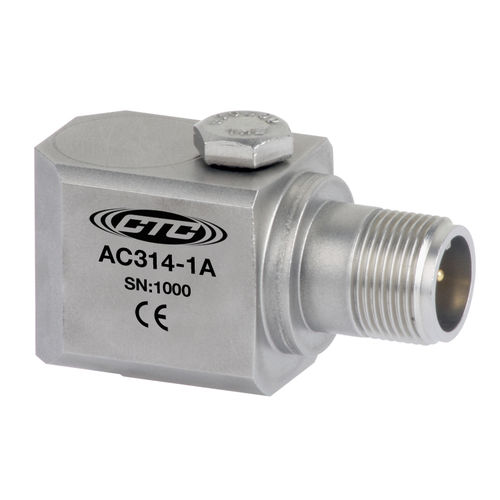

1-axis accelerometer AC314piezoelectric
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis
- Technology
- piezoelectric
Description
Low Voltage Accelerometer, Side Exit, 25 mV/g
Sensitivity: 25 mV/g
Frequency Response (±3dB): 480,000 CPM
Dynamic Range: ± 50 g, peak
Power Requirements Voltage Source: 3-5 VDC
Temperature Range: -58 to 250°F (-50 to 121°C)
Case Material: 316L Stainless Steel
Connector: 3 Pin MIL - C - 5015
Max Temp: 250°F (121°C)
