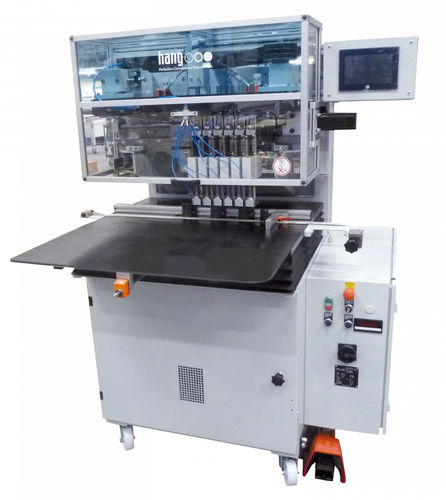

Paper perforating machine 207-20

The drilling machines of the 207 series are characterised by extensive basic equipment and user-friendly features. It is equipped with a tangential chain drive, which allows the drilling heads to be easily adjusted and replaced. Due to the large adjustment range of the drilling spindles, a considerable insertion depth of 300 mm and also due to the number of drilling heads - up to nine are possible - the application range of the 207 series is also considerably larger. The drilling heads can be plugged into the machine through exchangeable indexing bars for all current standard hole patterns. This simplifies the changeover process and prevents errors when adjusting the centre distances. Precision drilling heads, 1 - 9 pieces Drill diameter 3 -14 mm Adjustment range of drilling spindles from 36-460 mm Maximum stacking height 65 mm (drill cutting length max. 70 mm) Individual drill bit length compensation (up to 6 mm) Large insertion depth 300 mm Quick clamping of the paper drill bit Infinitely variable drill speed with digital speed display, 260 – 1800 min-1 Infinitely variable table lift speed Fast return stroke Inching mode for setting up the machine Machine moveable on steerable rollers Depth and side stops for fine adjustment with position indicator (0.1 mm pitch) Depth and side stops with "Zero-slot" adjust themselves automatically to the table (insertion depth 285 mm) Working height 950 mm
