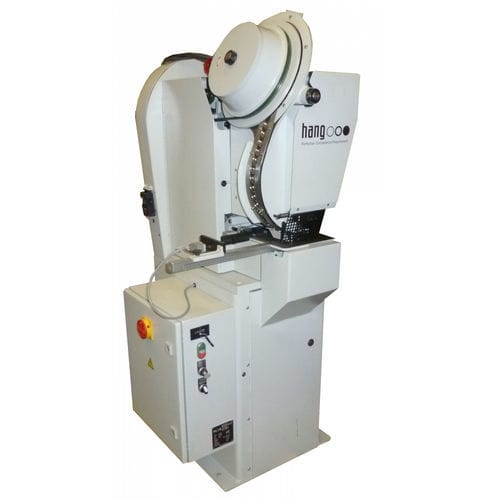

Electric eyeleting machine 115-05

automaticfor ring binders

for inserting grip hole eyelets in binder covers Separate punching and eyeletting tools punch the holes and set the eyelets in one stroke in a rapid, cam-controlled sequence of movements Easy to replace, automatic eyelet guide Set up for one eyelet size up to a maximum inner diameter of 25 mm Pressure compensation for processing different material thicknesses, differential range of 2 mm 3 point release of the rivet stroke with microswitches for precise positioning of the folder cover Adjustable side and rear stops Insertion depth 120 mm Electric part counter Drive with maintenance-free braking motor
