Data modem Naos.III
analogRS232RS485

data modem
data modem
data modem
data modem
data modem
data modem
Add to favorites
Compare this product


Characteristics

Type
data
Network
analog, RS232, RS485, GPRS, GSM, IP, EDGE, 3G, quad-band, RJ45, USB
Application
industrial, for M2M application
Mounting
DIN rail, embedded, integrated

Description

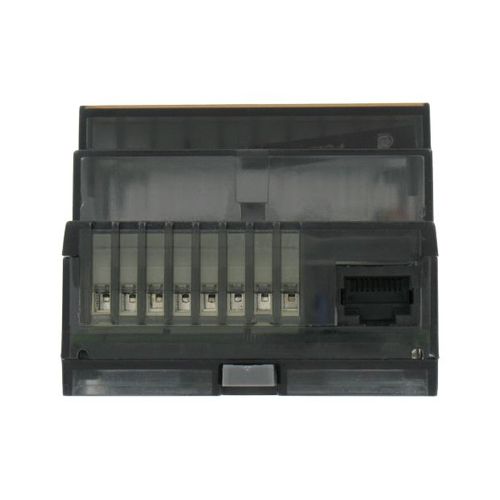

Naos.III is a DIN rail modem for 3G data connectivity in M2M applications enabling remote monitoring, control, management and reporting of industrial and comercial equipment. Naos.III is equipped with an integrated SIM card holder, main communication port hrough RS232 or RS485 interface, aux communication through RJ45 jack. Naos.III is fully backward compatible with existing EDGE and GSM/GPRS networks through quad-band radios. Working out-of-the-box for applications in all regional markets where products has frequency band coverage: the ideal solution for wide geography applications, embedded TCP-IP stack, extended AT command set. Power supply • DC Voltage: 9,5 ... 35 V polarity independent • AC Voltage: 9,5 ... 27 V • Idle Power: < 200 mW • Peak Power: < 10 W Environment • DIN EN-50022 rail 4 modules • Polycarbonate self-extinguish UL94-V0 • Weight: 200 g • Operating temperature: -40 ... 85°C • Humidity: 10 ... 85% non condensing • Degree of protection IP40 Output power • Class 4 (2W for GSM850 and EGSM900) • Class 1 (1W for DCS1800 and PCS1850) • Class 3 (0.25W for UMTS) • Class E2 (0.5W for EDGE 850/900) • Class E2 (0.4W for EDGE 1800/1900) Interface • SIM and U-SIM 1.8V / 3V • Main UART RS-232 or RS485 SELECTABLE • Aux UART (RJ45 cable) • USB 2.0 (internal optional) • 1 analog input 0...12Vdc • I2C available on RJ45 connector
