Twin-screw extruder ZSK Mc¹⁸ series
high-throughputflexible

twin-screw extruder
twin-screw extruder
twin-screw extruder
twin-screw extruder
twin-screw extruder
twin-screw extruder
Add to favorites
Compare this product


Characteristics

Number of screws
twin-screw
Other characteristics
high-throughput, flexible
Screw diameter

Max.: 133 mm
(5.2 in)

Min.: 18 mm
(0.7 in)

Maximum speed

1,000 rpm, 1,200 rpm
(6,283 rad.min-1, 7,540 rad.min-1)

Torque

Max.: 15,300 Nm
(11,285 ft.lb)

Min.: 140 Nm
(103 ft.lb)

Power

Max.: 3,364 kW
(4,573.77 hp)

Min.: 37 kW
(50.31 hp)

Description

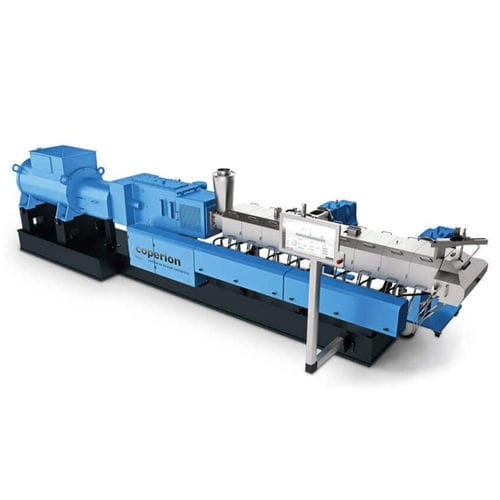

The ZSK Mc18 high performance twin screw extruder is a superlative product. With its torque of 18 Nm/cm3, it has made a name for itself on the market as a throughput champion for products with high torque requirement such as engineering plastics. The 30% increase in torque compared to the predecessor extruder model ZSK Mc PLUS leads to increases in throughput of up to 100%. Therefore the ZSK Mc18 twin screw extruder ensures production with maximum economic efficiency. The optimum price/performance ratio, the extremely energy-efficient operation, the wide range of applications, and the associated high level of flexibility of the machine are additional advantages. With its Do/Di of 1.55, the ZSK Mc18 strikes just the right balance. It has proven itself in the processing of products with high torque requirements and enables reliable scale-up within the entire Mc18 twin screw extruder series. In addition, it is possible to scale-up and modernize the ZSK Mc PLUS series to the Mc18 series. • More than 30% increase of specific torque • Up to 100% increase in the throughput rate Increased energy efficiency by reduced specific energy input • Greatly improved productivity • Improved compounding quality by gentle processing with a higher filling degree • Reduced compound temperature at much greater throughput rates • Proven high ZSK safety enabled by new designs and developments • Gentle product handling for maximum quality • Maximum flexibility in product changes and machine modifications • Optimum graduation of the machine sizes

VIDEO
