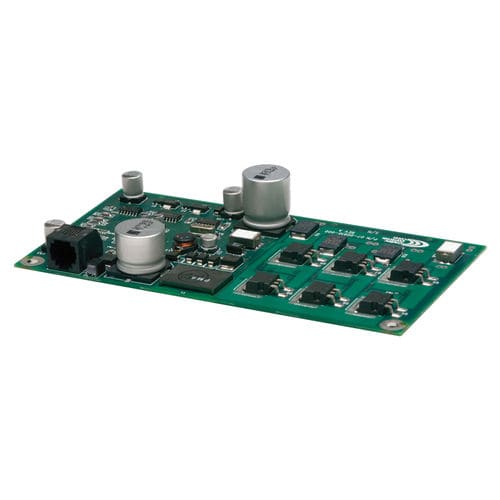

DC servo-amplifier Accelus ASC series

brushlessstepperdigital

The ASC delivers high-performance control of brushless and brush motors in a cost-effective card. A panel mounted version is also available. Torque and velocity modes are complemented by Step/ Direction position mode. Feedback is incremental encoder and digital Halls. Specifications CONTINUOUS CURRENT 6A PEAK CURRENT 18A SUPPLY VOLTAGE 20-55 VDC DIMENSIONS 154.2 X 89.1 X 29.1 mm DIGITAL INPUTS 6 DIGITAL OUTPUTS 2 FEEDBACK Digital Halls, Incremental COMMAND INTERFACE Analog, Step/Direction, PWM ENVIRONMENT Commercial • PCB Mount • Position, Velocity, and Torque Control • Controller Interface Stepper Interface ±10V Velocity / Torque Command PWM Velocity / Torque Command Electronic gearing • Field-Oriented Control for Optimal Speed / Torque • Auto-Tuning and Auto-Phasing • Feedback Digital Encoder and Halls • Programmable I/O: 6 inputs, 2 outputs • UL and cUL recognized component to UL 61010-1 3rd Edition description The Accelus™ servoamplifier drives DC brushless motors in position, velocity, or torque modes with 100% digital control. Commutation is sinusoidal using encoder feedback from the motor. Hall signals are used for phase-initialization and phase-correction eliminating motor hunting after power-up. Advanced field-oriented-control ensures the highest motor torque over a wide speed range, minimizing motor heating and maximizing efficiency. Digital control algorithms transform AC stator currents into direct and quadrature components. The torque-producing quadrature current is controlled by the current loop, and the direct component is driven to zero eliminating losses from current that doesn’t produce torque.
