mobile fume extractor / welding / cartridge / with extraction arm
JETCLEAN DF Coral

{{requestButtons}}

Characteristics

  • Mobility:

    mobile

  • Applications:

    welding

  • Filter type:

    cartridge

  • Other characteristics:

    with extraction arm

  • Output:

    Max.: 2,280 m³/h (80,517 ft³/h)

    Min.: 1,400 m³/h (49,441 ft³/h)

  • Power:

    Max.: 2.2 kW (2.99 hp)

    Min.: 0.55 kW (0.75 hp)

Description

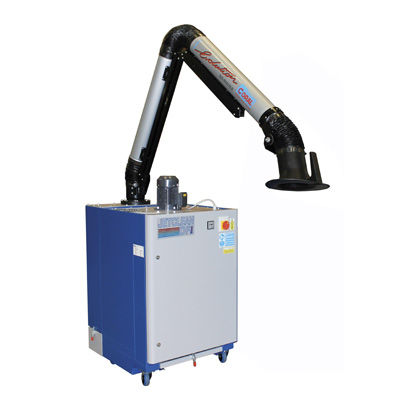

Cartridge filter for the extraction and filtering of welding fumes, gases, vapours and aerosols. The classical pocket filters for welding and dusts have always dealt with this problem! CORAL gives a competitive, simple and reliable response with the JETCLEAN trolley-mounted unit with long-life polyester cartridges, washable and with manual compressed air cleaning. Operating principle and applications: the fumes are extracted by the patented "UNIVERSAL NO-SMOKE" (STANDARD) or "EVOLUTION NO-SMOKE" (OPTIONAL) arm, they pass through a metal separator with chicane, pass along the cartridge filtering section and are expelled by the fan mounted in the upper part of the unit. JETCLEAN is essentially designed to treat welding fumes and small amounts of dry dusts.
