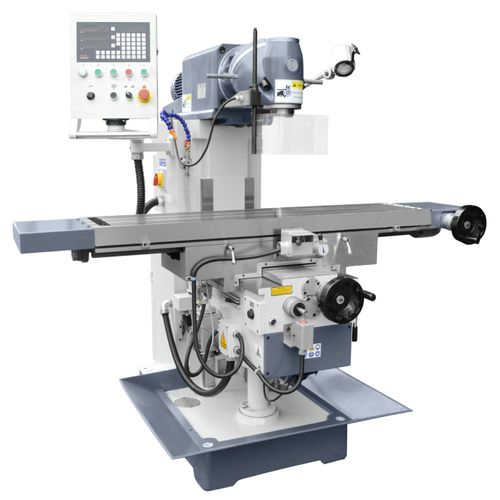

3-axis milling machine UWF 110

universaldrillingwith moving table

A new generation of conventional machines. Axis movement is performed by high quality servomotors, increasing accuracy and efficiency. Simple handling and reliability make this model very popular. Technical data Table dimensions 1270 (optional 1370)×300 mm Maximum longitudinal travel 720 (optional 1000) mm Maximum transverse travel 380 mm Maximum vertical travel 400 mm T-slots number 3 T-slots width 14 mm Spindle taper ISO 40 Distance from spindle to table surface 80–660 mm Rapid longitudinal table feed 1000 mm/min Rapid transverse table feed 1000 mm/min Rapid vertical table feed 750 mm/min Flood coolant pump power 60 W Net weight 1350 kg Dimensions 1720×1680×1700 mm Available equipment • Digital readout for 3 axes • Horizontal spindle rest • 2 long milling arbors • Worktable guard • Milling arbor with a set of collets for end mills • 1–16 mm drilling chuck • ISO 40/Morse reduction sleeves • 24V lighting installation • Cooling system
