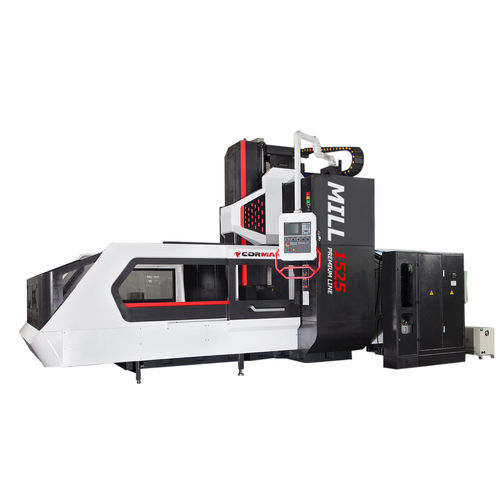

3-axis CNC machining center MILL1525
verticalgantry type

3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
gantry type
X travel

2,700 mm
(106 in)

Y travel

1,700 mm
(67 in)

Z travel

1,000 mm
(39 in)

Rotational speed

Min.: 30 rpm
(188 rad.min-1)

Max.: 3,200 rpm
(20,106 rad.min-1)

Power

15 kW, 18 kW
(20.39 hp, 24.47 hp)

Work feed X-axis

8 m/min

Work feed Y-axis

12 m/min

Work feed Z-axis

8 m/min

Weight

25,000 kg
(55,115.57 lb)

Overall length

8,260 mm
(325.2 in)

Overall width

4,200 mm
(165.4 in)

Overall height

4,700 mm
(185 in)

Description

Machines from the PREMIUM LINE series were created in order to fulfill the requirements of the most demanding users. The high quality and reliability of components ensure higher precision and efficiency of machining with the usage of multiple tools. Machining centres are built with parts from the best Taiwanese, German, Japanese and Chinese manufacturers, such as HIWIN, POSA, SIEMENS, FANUC, OMRON, PRAGATTI, SHNAIDER, CHANDOX, FAG, BOSCH REXROTH. Technical data Table dimensions 2500×1500 mm Spindle taper BT50 Number/width/distance of T-slots 7–28–160 mm Table load capacity 6000 kg From spindle to table surface distance 150–1150 mm Distance between columns 1750 mm Feed speed 1–4000(X/Y)/1–2000(Z) mm/min Positioning accuracy 0.005 mm Available equipment • SIEMENS 808D • SIEMENS 2-year warranty • 8000 RPM spindle • Linear guides • 3-colour alarm indicators • Lighting • Hermetic body of the machine • Automatic lubrication system • Pneumatic system Optional equipment • SIEMENS 828, Heidenhain, FANUC control systems • spindle range of 10000 / 12000 rpm • cooling via spindle 20 bar / 40 bar • 4th axis • belt shavings ejector + container • oil separator • automatic door • Renishaw TS-27 automatic tool setting probe • OMP60 optical transmission probe
