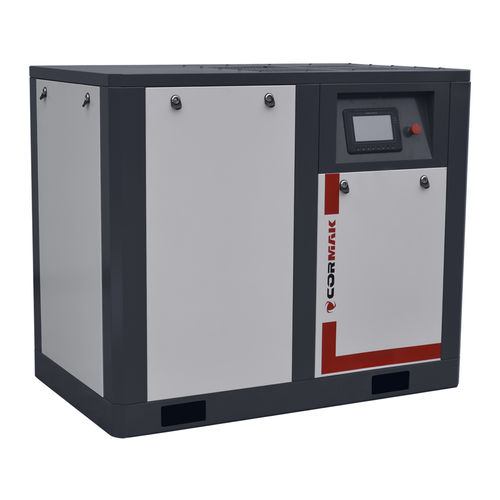

Electronic compressor THEOR 50
airelectricstationary

electronic compressor
electronic compressor
electronic compressor
electronic compressor
electronic compressor
electronic compressor
electronic compressor
Add to favorites
Compare this product


Characteristics

Technology
electronic
Type
air
Power source
electric
Portability
stationary
Application domain
industrial
Applications
construction
Voltage
400 V
Other characteristics
compact
Flow

5.6 m³/min
(197.76 ft³/min)

Power

37 kW
(50.31 hp)

Length

1,500 mm
(59 in)

Width

1,000 mm
(39 in)

Height

1,330 mm
(52 in)

Weight

830 kg
(1,829.8 lb)

Description

• hard, compact construction of screw compressor from the European producer • specially designed cooling system ensures optimal working conditions even at high load of the device • connection of the cooling system to the module through good quality hydraulic wires • this technology allows significant energy saving • special construction of air outlet for effective work • efficient and solid pump installed in compressor • unique filtration system with triple separation for effective work • efficient motor with power 37 kW made in IP54 standard using a belt transmission, which ensures high effective efficiency • lower noise of screw compressor thanks to apply specially designed soundproofed case (soundproofing plates) • electronic controller from MAM series allow to set parameters: time between service inspections, power failure alarms, phase change, phase loss, overheating, other, work in Master / Slave mode, it is possible to connect up to 16 devices in the pneumatic network, possibility of remote control by means of a computer and other
