Copper cable assembly
FutureCom™ F
CORNING Telecommunications

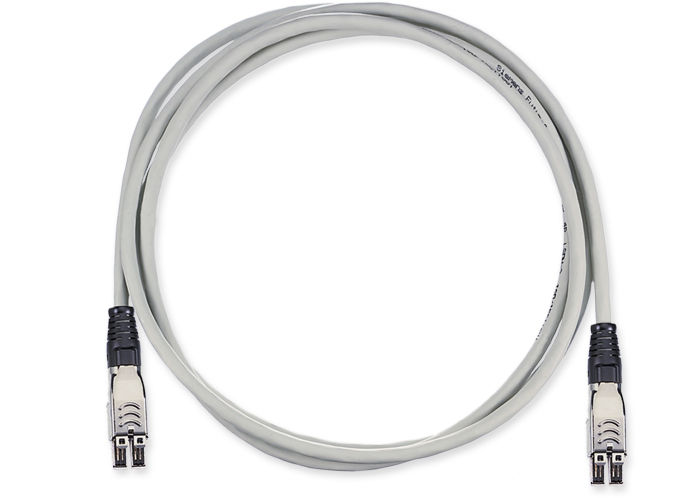

The FutureCom F S/FTP flex patch cord with 2 S1200/4 connectors in compliance with IEC 60676-3-104 provides transmission performance meeting Category 7 specifications ISO/IEC 11801 (2002) and EN 50173-1 (2003). Outstanding performance for the transmission of digital data signals for future comming applications up to 10GbE in compliance with the new Class EA and IEEE 802.3an standard. FutureCom cables are low skew products, i.e. the difference in propagation delay between the individual pairs is very low. This is increasingly being requested for Gigabit Ethernet. The suitability of the cable for high-bit-rate transmission systems ensures a high degree of future proofing. The S1200 connectors are fully assigned and hence application independent.
Additional features are the slim design and low weight of the flex cables. Each pair is individually shielded with foil (FTP). The twisted pairs are additionally enclosed as a group in a braided shield (S/FTP) to provide superior shielding performance.
The flex cable thus exceeds the requirements for EN 55022 Class B emission and EN 55024 immunity, enabling networks to be built which are compliant with the standards on electromagnetic compatibility.
The FutureCom™ F Category 7A patch cords have four individual foil-shielded pairs (PiMF) and an additional braid shield (S/FTP). They are assembled with two shielded S1200/4 connectors.
The zero halogen patch cords (LSZH) are non-corrosive according to IEC 60754-2 (FRNC) and EN 50267, low smoke according to IEC 61034 and EN 50268 and flame retardant according to IEC 60332-1, Category B and EN 50266-2-1.
Additional features are the slim design and low weight of the flex cables. Each pair is individually shielded with foil (FTP). The twisted pairs are additionally enclosed as a group in a braided shield (S/FTP) to provide superior shielding performance.
The flex cable thus exceeds the requirements for EN 55022 Class B emission and EN 55024 immunity, enabling networks to be built which are compliant with the standards on electromagnetic compatibility.
The FutureCom™ F Category 7A patch cords have four individual foil-shielded pairs (PiMF) and an additional braid shield (S/FTP). They are assembled with two shielded S1200/4 connectors.
The zero halogen patch cords (LSZH) are non-corrosive according to IEC 60754-2 (FRNC) and EN 50267, low smoke according to IEC 61034 and EN 50268 and flame retardant according to IEC 60332-1, Category B and EN 50266-2-1.
