Water washing machine GW

spraysteamautomatic

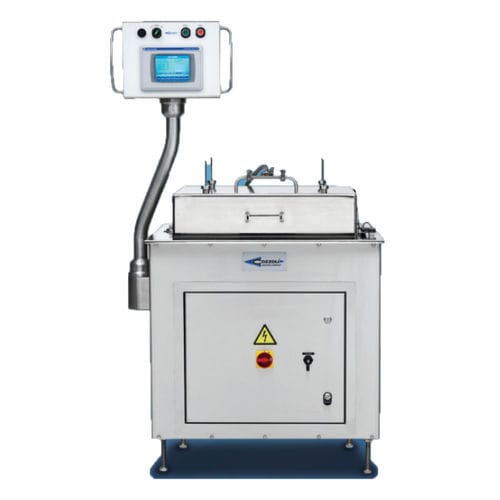

This high production batch washer features user programmable wash cycles with coded access and direct loading from shrink-wrap packages. Handles various media including sterile air, water and steam. This washer can handle vial and ampule sizes from 1ml to 500ml with speeds up to 10,000 containers per hour. Changeover is quick and easy and the GW Series is exceptionally low maintenance. The GW24 Batch Washer is a reliable, high production vial and ampule cleaning machine, designed for years of reliable operation with an output of up to 23,000/hour. Using a PLC to control the wash cycle, the wash parameters can be programmed into the machine for individual wash cycles. Up to 19 different wash recipes of 99 steps each provide for individualized customer requirements. • 316L Stainless Steel Needle Plate • 3 Diaphragm Valves with Teflon Seals • Hood Lock • Allen Bradley PLC with Panelview Display • Swing Arm Control Panel for Easy Access and Calibration • 115v, 60Hz, 1Ph – NEMA 4x Utilities • Top Cover Safety Switch • Process media lines (air, liquid, steam) are fitted with sanitary • valves and piping, eliminating threaded connections. • (2) 1” Valve for Additional Wash Media • Incoming WFI Manifold • Inspection Shield Assembly • Recirculation Unit • Low Incoming Pressure Safety Switch • Cycle Completion Annunciator • Remote Access Programming & Monitoring • Alternate Electrical Configurations • Spare Parts Kit PROTOCOLS • IQ/OQ Validation Protocol – Written • Factory Acceptance Test Protocol - Written • PQ/Performance Qualification Protocol – Written • IQ/OQ Validation Protocol – Execution • Factory Acceptance Test Protocol – Execution
