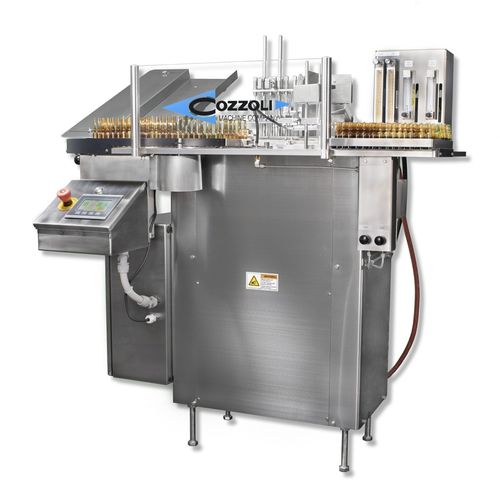

Our stainless steel FPS Series is ideal for filling and sealing ampoules with speeds from 15-120 ampoules per minute and a fill accuracy of +/- .5%. The FPS is designed with a sealed top cover plate to ensure the internal drive mechanism remains free of extraneous matter.
The FPS sériés is a compact ampoule filling and sealing monoblock machine; featuring an unscrambler, flushing and filling stations and is known for its simplicity, operational reliability and minimal maintenance factors.
Utilizing Cozzoli's exclusively patent sliding tube valve, the FPSuses stainless Steel syringes and positive head pressure to fill product with outer diameter dimensions up 1" (25.4mm) at full speed. Ampoule from 25.4mm to 28.6mm can be handled by alternate indexing.
Fill volume can be changed by a simple adjustment of a calibrated sector arm. Volumetric accuracy of fill is +/- 0.5%. Bottom-up filling is provided through the provision of two cams to lower and raise on a 2” or 5” stroke. Other cams are available for any special bottom up filling requirements.
Since the blending of proper amounts of oxygen and gas is important for effective sealing of the ampoule, this machine can be optionally equipped with a dual flow meter assembly that will visually indicate the oxygen and gas flow separately.
