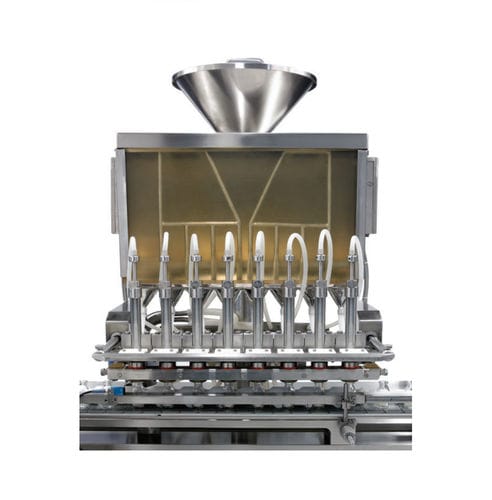

Automatic filling machine PF series

bottlefor powdersfor the pharmaceutical industry

Our PF Series powder fillers feature a unique dual-level supply hopper and agitator that provides just enough material of uniform density to supply the dosing chamber of each filling head. This design promotes the highest level of performance for repeatability. This machine can be equipped with 2-12 filling stations with a speed of up to 300 containers per minute and a fill accuracy of +/- 1%. Our PF series of powder fillers are available with 2, 4, 6, 8, 10, 12 or 16 dosing heads. This high-precision powder filler can reach speeds up to 300 containers per minute, with accuracies of +\- 1% of fill volume. Powder fill ranges of 50mg to 75 grams can be filled in a single metered dose. A multi-dosing feature is available for larger fill volumes. This machine also features a unique dual-level supply hopper and agitator that provides a uniform level and density of material to the dosing chamber of each filling head to maximize accuracy and repeatability. OPERATING PRINCIPLE Dosing is accomplished by applying a predetermined amount of vacuum to the dosing chamber. Once the chamber is filled with powder, the vacuum cuts off and a pinch valve opens, creating a pathway between the chamber and the filling nozzle. Positive pressure is then applied to the chamber, sending the powder through the nozzle and into the container. The systems’ powder pathway is completely enclosed, preventing any exter-nal contamination. • 304 Stainless Steel Exterior 316 Stainless • Steel Contact Parts Hopper and Agitator • Assembly Set of Dosing Heads • Filter Replacement Kit • Set of Valve Block Plates • Vial Locator Assembly • Full Length Delrin Feed Screw • Programmable Controller
