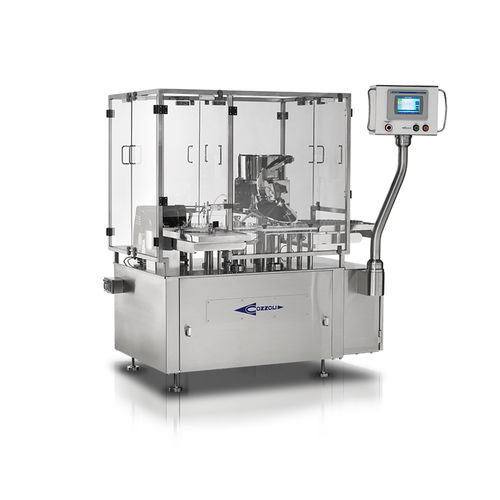

Filling and stopering machine for the pharmaceutical industry FSV50

The FSV series is ideal for applications where space is an issue. With hood isolation and laminar flow in mind, this machine utilizes the least amount of space for use in a clean environment. This machine will fill liquids, then stopper the containers using full or partial stopper insertion. Speeds of up to 50 containers per minute with a fill accuracy of +/- .5% can be achieved with the FSV. The Mini Monoblock is a small, reliable, high performance machine designed for processing vials in laboratory, clinical production environments or other areas with limited space. It is designed to use in clean room environments, with hood isolation and laminar flow in mind. Designed to fill liquid, then stopper or cap the containers at speeds up to 50 vials per minute, the Mini Monoblock is capable of covering a range of vial sizes from 1 ml to 100 ml. This machine can be equipped with a variety of freestanding filling methods triggered by the machine’s PLC. The Cozzoli positive displacement fill system is provided as standard. • PLC Controls for ease of operation and validation • Sanitary “wipe-down” cGMP design • No tool changeover • Straight through, side mount filling nozzle • Positive displacement fill system • Overload protection on main starwheel • Bottom-up fill • No vial-no fill • Make-up detection • Jog mode • Lexan enclosure • Fill volume: 1-100 ml • Utilities NEMA 4X Watertight • 220V, 60Hz, 1 Ph. • Speed Range: 10-50 vials per minute • 316L Stainless steel product contact parts • Bottum-up fill • No vial - no fill • Make up detection • Jog mode OPTIONS & ACCESSORIES • Removable infeed loading shelf • Pre & post flush
