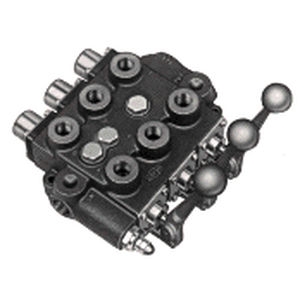

Spool hydraulic directional control valve BA series

manual4/3-way

The CROSS SBA series is a 3-pos., 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports and the SBA-ORB has SAE (ORB) ports. The SBS series has 12 volt solenoid (3-position,4-way). Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life. Features: 2500 PSI operating pressure for SBA 3000 PSI operating pressure for SBS & SBA-ORB 30 GPM flow rate SBA: 3/4 NPTF in and out, 1/2 NPTF work ports SBA-ORB & SBS: SAE ports, 1 1/16-12 in & out, 3/4-16 work Adjustable built-in relief set at 2000 psi Spring centered, open and closed center available Built-in load checks for lifting Field conversion kits: 1V0208 Power Beyond Sleeve (3/4 NPTF) 1V0249 Power Beyond Sleeve (1 1/16-12 SAE) 1V2015 Closed Center Kit (contains 1V0206 & 1R0035) 1V1626 Heavy Duty Handle Assembly 1V1485-02 Single Handle Actuator for 2 & 3 spool models
