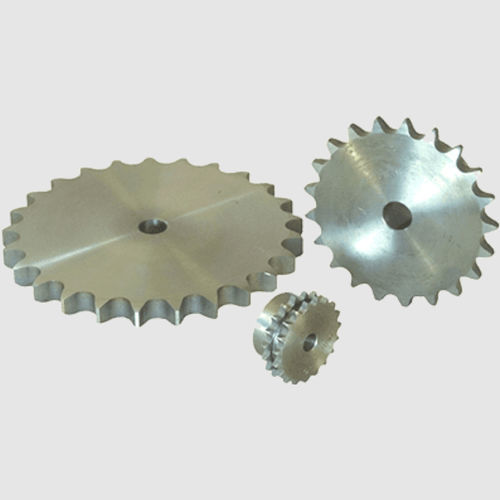

Straight-toothed sprocket wheel TB series
precisionmachineddouble

straight-toothed sprocket wheel
straight-toothed sprocket wheel
straight-toothed sprocket wheel
Add to favorites
Compare this product


Characteristics

Teeth
straight-toothed
Other characteristics
chain, double, idler, precision, machined, stainless steel, cast iron, carbon steel
Diameter

Min.: 24 mm
(1 in)

Max.: 993 mm
(39 in)

Description

An extensive range of stock pilot bored sprockets to suit: British Standard simplex, duplex, and triplex chains from 8mm to 2" pitch. American Standard simplex chains from 1/4" to 1" pitch, with tooth sizes from 8 to 150 teeth including most even tooth sizes. Sprockets to 40 teeth are manufactured in medium carbon steel, which can be provided with either chemical black or plain finish, and for simplex in 304 stainless steel. Larger sprockets are produced in high grade cast iron. Sprockets & Platewheels by Cross+Morse To complete the Chain Drive a comprehensive range of Standard Pinions, Wheels and Platewheels stocked for B.S. Standard Chains up to 2” pitch are offered, and Sprockets for ANSI Chains and other special chains can be manufactured to customers specifications. Pinions and platewheels are normally manufactured from medium carbon steels for high strength, and can be induction hardened for additional wear resistance. Pinions and wheels for precision roller chain and inverted tooth chains have fully machined teeth to ensure accuracy of engagement with mating chains. Standard Sprocket Range includes taper bore sprockets and bushes for quick assembly, low price finished bore product with high torque capability; idler sprockets and chain tensioners. Bolt on Taper Bore Hubs Cross+Morse Taper bore bolt on hubs are available to suit five different taper bushes. They are made of high grade cast iron and are phosphated. Double Simplex Sprockets For powered roller conveyor, a range of B.S. Double Simplex sprocket from 12 to 25 teeth for 3/8" to 1" chain are available pilot bored or with taper bore.
