flexible coupling / shafts / clamp / torque

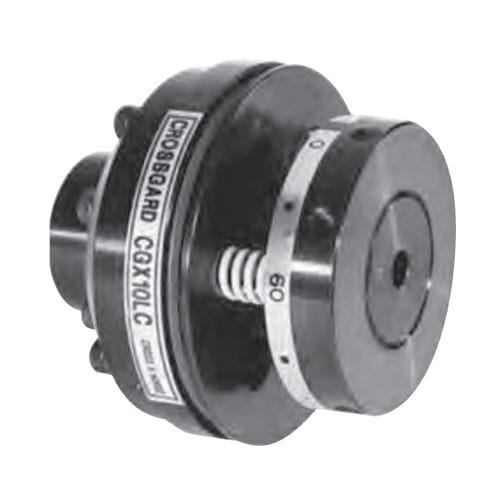

CGX-C series Cross & Morse

{{requestButtons}}

Characteristics

  • Type:

    flexible

  • Product applications:

    shafts, clamp

  • Other characteristics:

    torque

  • Torque:

    Min.: 1.5 Nm (1.1063 ft.lb)

    Max.: 696 Nm (513.3433 ft.lb)

  • Rotational speed:

    Min.: 240 rpm (1,507.96 rad.min-1)

    Max.: 700 rpm (4,398.23 rad.min-1)

Description

These couplings can be supplied with pilot bore, finish bore and keyseat and setscrews, or fitted with clamping elements to clamp directly to keyless shafts. The use of clamping elements eliminates all backlash in the drive line within the operating torque range, but does require an increase to the overall length of coupling in order to accommodate. Coupling and clamping element assembly are supplied to suit specific metric shaft sizes. Clutch and Coupling half can have different bush sizes. Each model can have three different torque ranges which is achieved by using different types of spring.
