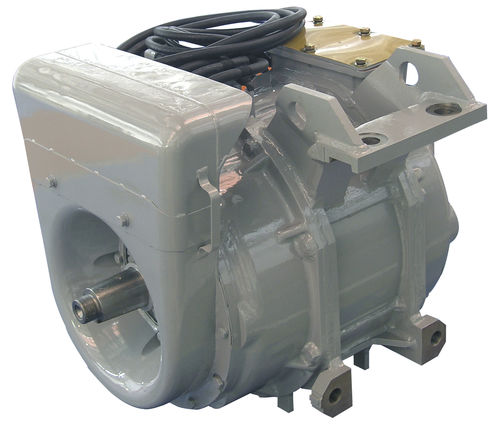

Three-phase motor MB-5120-Aasynchronous> 1000 V4-pole
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- asynchronous
- Voltage
- > 1000 V
- Number of poles
- 4-pole
- Applications
- traction, for railway applications
- Power
300 kW
(407.886 hp)- Intensity
106 A
- Rotational speed
Max.: 6,120 rpm
(38,453.09 rad.min-1)4,140 rpm
(26,012.39 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
Type：MB-5120-A
Usage：Type CRH2 EMU with speed of 200km/h and above
Main technical features
Insulation grade: 200（stator）；
Type: Three-phase squirrel-cage type induction traction generator
Cooling method: Forced draught cooling method;
Power transmission mode: Parallel universal gear type flexible coupling mode;
Number of poles: 4 poles;
Number of phases: 3-phase;
Load mode: Bogie frame suspension installation
Power：300KW；
