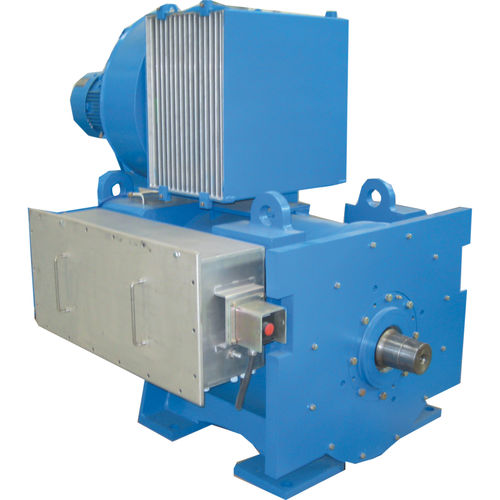

Motor with integrated inverter YSP4237-6ACasynchronous400 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Voltage
- 400 V
- Protection class
- IP55, IP44, explosion-proof
- Configuration
- squirrel cage, squirrel-cage rotor, stainless steel
- Applications
- for machine tools
- Other characteristics
- with integrated inverter
- Power
600 kW
(815.773 hp)- Intensity
1,066 A
- Torque
8,682 Nm
(6,403.5146 ft.lb)- Rotational speed
Max.: 1,220 rpm
(7,665.49 rad.min-1)Min.: 660 rpm
(4,146.9 rad.min-1)
Description
Main features
Integrated explosion-proof type: Expzde Ⅱ BT4 (Serial number of certificate: CNEz07.0986X)
Stator applies shaped hard winding
It is installed with explosion-proof heater（AC220V、200W、50Hz）
High strength copper alloy squirrel-cage rotor
200 level corona-resistance insulation structure
Rotating shaft adopts high strength alloy steel material.
IP55 increased-safety explosion-proof stainless steel junction box
It is installed with explosion-proof air pressure switch for positive pressure protection and explosion-proof overhaul switch for system overhaul protection.
Each phase winding of stator is embedded with two PT100 stator winding temperature sensors.
Imported SKF/FAG bearing is applied.
Bearing temperature sensor
Blower power: 11kW，380V，3136Pa，110m3/min
Integrated protection grade: IP44
