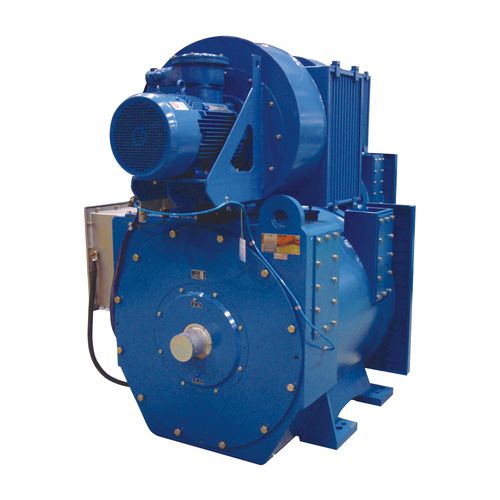

Motor with integrated inverter YSP4234-6ACasynchronousIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Protection class
- IP55, IP44, explosion-proof
- Configuration
- squirrel cage, squirrel-cage rotor, stainless steel
- Applications
- for machine tools
- Other characteristics
- with integrated inverter
- Power
1,200 kW
(1,631.545 hp)- Intensity
1,426 A
- Torque
11,460 Nm
(8,452.4622 ft.lb)- Rotational speed
Min.: 1,000 rpm
(6,283.19 rad.min-1)Max.: 1,710 rpm
(10,744.25 rad.min-1)
Description
Main Features
Integrated explosion-proof type: Expzde Ⅱ BT4 (Serial number of certification: CNEz07.0986X)
Stator applies shaped hard winding
It is equipped with explosion-proof heater（AC220V、200W、50Hz）.
High strength copper alloy squirrel-cage rotor
200 level anti-corona insulation structure
Rotating shaft employs material of high strength alloy steel
IP55 increased-safety explosion-proof stainless steel junction box
It is installed with explosion-proof air pressure switch for positive voltage protection and explosion-proof overhaul switch for system overhaul protection.
Each phase winding of stator is embedded with two PT100 stator winding temperature sensors.
Imported SKF/FAG bearing is applied.
Bearing temperature sensor.
