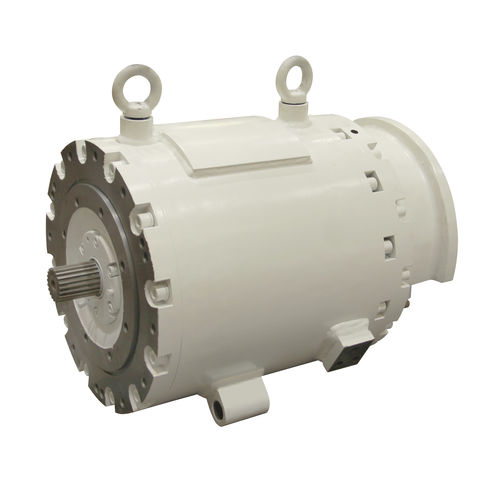

Three-phase motor TBYC1-37-8

synchronousexplosion-proofIP55

Basic Parameter Rated power37kWPeak power60kW Rated torque353N.mPeak torque650N.m Rated rpm1000r/minPeak rpm 4500r/min Rated voltage152VRated current163.7A Rated efficiency92.3%dutyS1 Insulation classHIPIP55　 Bearing typeRolling bearingCooling method Hydraulic oil cooling　 noise85dBweight225kg Basic Parameter for motor control Rated power 　37kWPeak power 　55kW Rated current175APeak current 300A Input voltage range　30～720VDCOutput voltage range　　0～400VAC Output frequency range　0～400HzCooling method　Oil cooling IP　IP54Rated efficiency　98.5% weight　38kgWorking surroundings　-30℃～70℃ featureAdvantage Explosion-proof motorIt obtains ExdIMb explosion-proof certificates of qualification and mining product safety certificates, meeting explosion-proof requirements of mining equipment. High reliability By adopting new rare earth material and reasonable design, it effectively overcomes the irreversible demagnetization of permanent magnet so as to ensure safe and reliable operation under various working conditions. Small size and light weightin view of narrow space in mine alley, the motor adopts compact design to satisfy motor dimension and weight strictly required by transport vehicle. Low maintenance costThe full-enclosure structure creates clean and unpolluted environment within the motor and reduces the maintenance cost in its life-cycle operation process.
