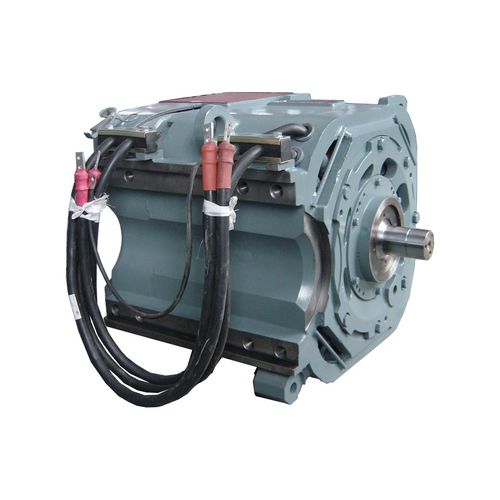

DC motor ZQDR310B

synchronousfor railway applicationstraction

Product Name ZQDR310B Traction Motor Volume （length*width*height：mm）867x801x681 Weight（kg）1595 Rated output power310KW Rated working voltage500V Rated Current680A max current1000A Rated rotating speed755r/min Maximum rotating speed3100r/min Rated torque Starting torque is no less than Motor insulation gradeH/H ZQDR310B traction motor is designed according to ZQDR310B DC traction motor technology protocol singed with CRRC Sifang Co.,ltd. ZD126B4 DC traction motor is improved based on the previous ZQDR310A motor by changing some external interface dimensions of the motor but they have the same internal structure, in particular the same electric parameter. Technical Feature 1. Meter-gauge locomotive (metric thread) 2. rolling axle-suspended 3. Rolled steel sheet welding frame Technical Advantage 1. The largest power traction motor for narrow-gauge diesel locomotive in China at present 2. Simple structure, easier maintenance and low costs. Its rolling axle-hung bearing structure enables its wide application to multiple narrow-gauge locomotives. 3. It adopts steel plate pressing welding structure for frame to increase integration and enhance reliability.
