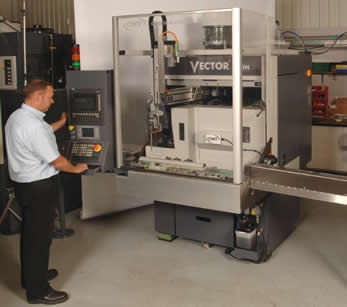

3 axis CNC cylindrical grinding machine
ø 450 mm | Vector
Curtis Machine Tools Ltd.
Vector
For short cycle single or multi-plunge grinding of diameters, forms, faces and threads.
Optional integral loader and palletiser or through-machine transfer system.
Specifications
Grinding Wheel
Diameter 450mm
Maximum width 50mm
Power 5.5kW
Maximum speed 5,000rpm
Workpiece
Max grinding length 100mm
Maximum swing 150mm
Maximum between centres 160mm
Workspindle bore 50mm
Workhead options
Universal (retractable for loading)
Heavy duty (adjustable position)
Light duty (low inertia, retractable)
Concentric centreless
Angle straight approach to 30deg
