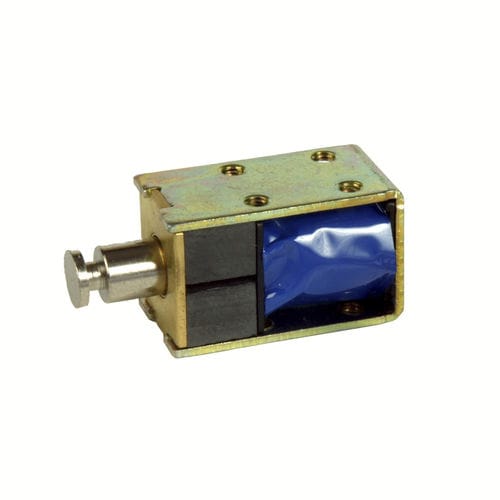

Model GK0625 latching solenoid utilizes a permanent magnet in conjunction with a solenoid coil to maintain the position of the plunger with no current applied.
Pull or thrust types available
Permanent magnet latching
Optional voltage ratings
Ø6mm plunger
25mm x 13mm x 15mm frame size
100% power 2.5 Watts dc
2.1N force at 2mm stroke
Latching solenoids are ideally suited to continuous duty applications, since even without power, the plunger and load will remain latched in the energized position. Applications for latching solenoids include automatic door closers, locks, latching mechanisms, medical equipment, security devices, and battery powered equipment.
