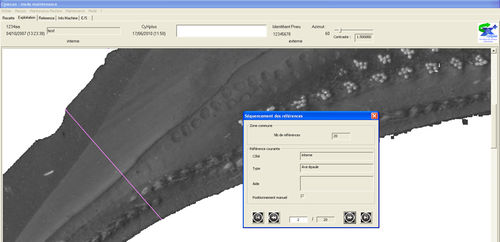

Visual inspection software CYXSCAN

for tires

CyXplus solutions get cut cross section tires, inspect all their angles but does not destroy tires or even touch them. Yesterday, the inspection of cut tires was dedicated for R & D departments whom spent hours cutting, polishing and then manually measure critical aspects of tire slices. Then, to increase profitability and save time, CyXplus developed CyXscan to scan material cut tires. After calibration and with the help of powerful software measurement, the purpose of the CyXscan system is to allow the laboratory or the Q.A. engineering to check tire cross sections that are cut every day in sampling coming from the production line. CyXscan is a very important step and it’s very appreciated by tire manufacturers but this is only the first step. With their expertise in the field of X-ray in-line inspection, CyXplus engineers have developed the missing link: an online machine which can provide in a few seconds images of tires cross section without destroying tires: 2D computed tomography is there! As part of benefits of the CyXplus Computed Tomography solution, the time taken for cross section was cut from hundreds of minutes to less than 3 minutes (inspection acquisition, reconstruction and detection), which means the process can now be moved from labs to production lines.
