Electronic vacuum switch PSR series

compactdigitalminiature

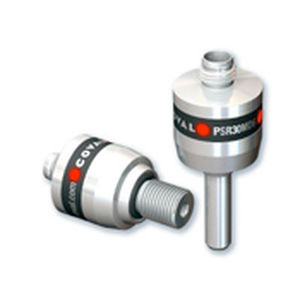

Pre-set Mini Vacuum Switch, PSR series High precision, universal solutions, choice of versions: electric, electronic, digital or pneumatic. PSR Thanks to their compact and ultralight design, the PSR series pre-set mini vacuum switches enable installation to be as close as possible to the suction cups to reduce reponse times. PSRs are ideal for applications that only need a simple “object gripped” signal, and offer an economical and effective solution for applications with one vacuum generator per suction cup. ADVANTAGES High mechanical resistance thanks to its robust aluminum body Compact and ultra light Guaranteed precision, thanks to its pre-set vacuum level Available in two pre-set vacuum levels, 30 and 50% vacuum 4 visual LED indicators with 360° visibility The pre-set vacuum level helps to ensure security and prevent the risk of unplanned modifications. Characteristics 1 contact output Preloaded contact-output value: 30 or 50% vacuum Hysteresis 10% of max vacuum Overpressure: +3 bar PNP
