laser scanner / profile / XY / for surface inspection



  • Type:


  • Number of axes:


  • Applications:

    for surface inspection, measurement, for measuring, for detection, surface inspection, shape measurement, for robotic dimensional inspection, object measurement, for contact and non-contact measurements, for coordinate measuring machines

  • Technology:

    laser, laser line triangulation

  • Other characteristics:

    high-speed, high-resolution, line, security, large-format, modular, Ethernet, infrared

  • Operating temperature:

    Min.: -25 °C (-13 °F)

    Max.: 50 °C (122 °F)

  • Measuring distance:

    Min.: 0 m (0'00")

    Max.: 20 m (65'07")

    20 m (65'07")

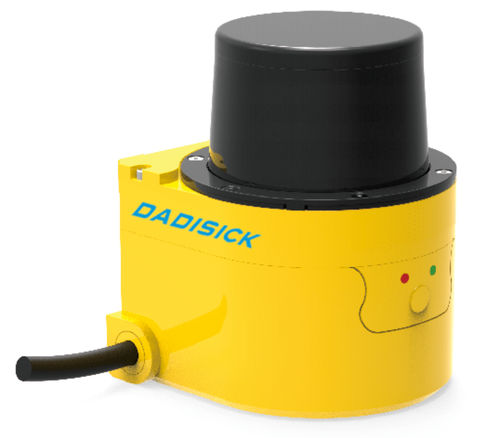

Safety Laser Scanners
Lidar measuring coordinate system / scan range / range Accessory Laser radar power interface Indicator and operation buttons
Light sourceInfrared laser (905nm)
Laser safety levelOne type (GB7247.1-2012, human eye safety)
Laser spot exit aperture8mm
Luminous spot divergence angle12.5mrad
Scan angle range300°
scanning frequency25HZ
Scanning angle fraction0.5°
Measuring range0.1m-20m
10% reflectance range10m
Outdoor performanceAnti-dirty, anti-sunlight
Rain, fog, smoke penetrationstand by
Measurement error:a)Systematic error (typical)5cm
b)Statistical error (1σ)2cm
Built-in application Regional monitoring:
a)Monitoring mode: point number monitoring / target width monitoring / contour monitoring
b)Monitoring signal type: attention / warning / alarm
c)Number of regional groups; 16 groups, support self-learning background clipping
d)Guide the network camera to video locate and track the monitoring target
Equipment self-test:
Content: Translucent cover is dirty / blocked / high temperature / low temperature; output mode: indicator + TCP message
Ethernet:Rate: 10/100Mbps; network protocol:TCP/IP; function: device configuration / measurement data output / monitoring signal output
I/O input:Quantity: 4; Type: Switch level input; High level range: 9v-28V DC; Low level range: 0V-5VDC; Preset function: monitoring area selection (0x0-0xF); area monitoring disarming/forced alarm, active level: high level;
I/O output:Quantity: 4; type: PNP OC output; level voltage: power supply voltage; power-on state: high resistance;
