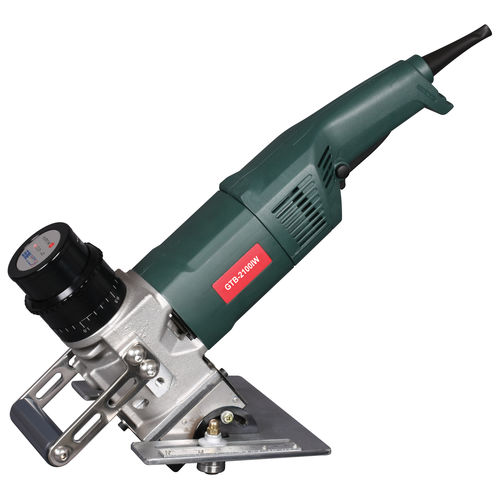

Electric chamfering machine GTW-2100-IWhand-heldsheet metalfor pipe ends
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- hand-held
- Applications
- weld preparation, sheet metal, for pipe ends
- Other characteristics
- for steel
- Power
1,700 W
(2.31 hp)- Chamfer width
Max.: 26.5 mm
(1 in)Min.: 12.5 mm
(0.5 in)- Chamfer angle
Max.: 90 °
Min.: 30 °
Description
Height Adjustment One-touch Spline Controller
Adjustment Increments Minimum 0.1 mm step
-
Usages Inner & outer pipe edge beveling for weld preparation
-
Maximum Bevel range per angle 30 ° ~ 90 °
-
Pipe size min. 190mm (O/D) / min. 330mm (I/D) or bigger
-
Weight 7.2kg
-
Power 1700W (or 1400W)
-
Inserts 3EA CFWB113050
-
Applications
Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials
