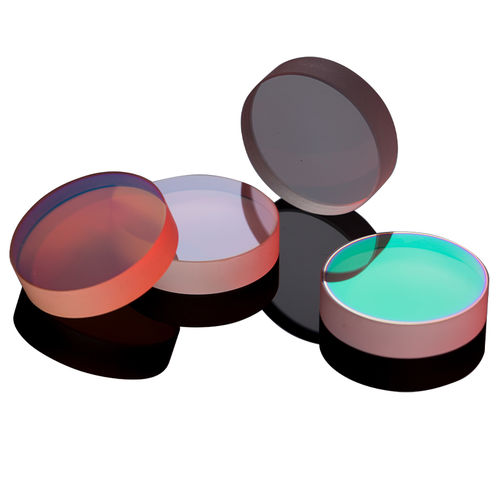

Laser mirror GCCH-1010 series
dielectricroundfused silica

laser mirror
laser mirror
laser mirror
Add to favorites
Compare this product


Characteristics

Type
dielectric
Shape
round
Material
fused silica
Use
laser
Options and accessories
high-reflectivity

Description

The Nd:YAG laser mirrors are designed for the fundamental, 2 harmonic, 3 harmonic and 4 harmonic of Nd:YAG lasers. They are intended for use at either 45° or normal incidence. We also offer dual wavelength mirrors for use at the fundamental and second harmonic wavelengths. •Diameter Tolerance: +0/-0.2 •Thickness: 6±0.2 •Parallelism: <3‘ •Flatness: λ/10 at 633nm •Surface Quality: 20-10 scratch-dig •Clear Aperture: 90% Diameter

Other Daheng New Epoch Technology,Inc(CDHC) products

Coating Components
