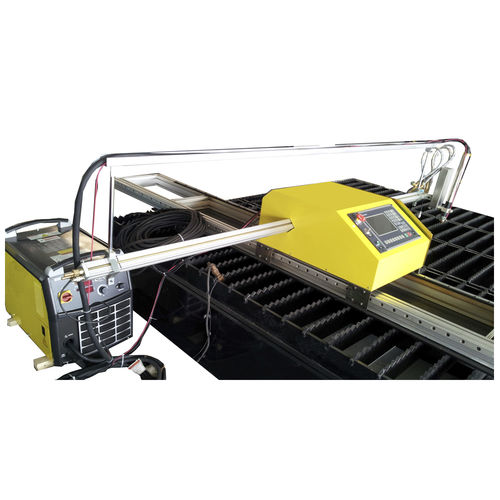

Flame cutting machine HB2008LCD-1.6X3.4for stainless steelfor metalsheet metal
Add to favorites
Compare this product
Characteristics
- Technology
- flame
- Material
- for stainless steel, for metal
- Product handled
- sheet metal, for thick sheet metal
- Control type
- CNC
- Associated function
- marking, contour
- Configuration
- gantry type, 2-axis
- Other characteristics
- automatic, portable
- X travel
1,600 mm
(63 in)- Y travel
3,400 mm
(134 in)- Cutting speed
Max.: 3,000 mm/min
(1.969 in/s)Min.: 0 mm/min
(0 in/s)
Description
HONEYBEE "N" series is a compact oxy-fuel/plasma CNC cutting system that is portable and economical. The machine’s size and weight make it easy to transport as the application requires. Automated functions and a user friendly CNC provide powerful, versatile, oxy-fuel or plasma processing in a value-minded package.
Machine Parameters:
Model:HB2005LCD-1200 X2000
Power Supply Voltage:220V/110V
Power Supply Frequency:50HZ / 60HZ
Rated Power Supply:180W
LCD Display Dimension:7.0Inches
Effective Cutting Width (X axis):1200mm(47’’), 1300mm(51’’), 1500mm(59"), 1600mm(63") can be customed
Effective Cutting Length (Y axis):2000mm(78’’), 3500mm(138"), 5000mm(197"), 6000mm(236") can be customed
Cutting Speed:0-3000mm per minute
Plasma Cutting Thickness:
2--25mm ( Depends on plasma power source capacity)
Flame Cutting Thickness:6--150mm
Advantages:
economic
can work with any machine plasma generators
compact and easy take
metal plate cutting
can cut any complex shape
2-25 mm mild steel & 2-20mm stainless steel cutting by plasma
6-150mm mild steel cutting by flame
