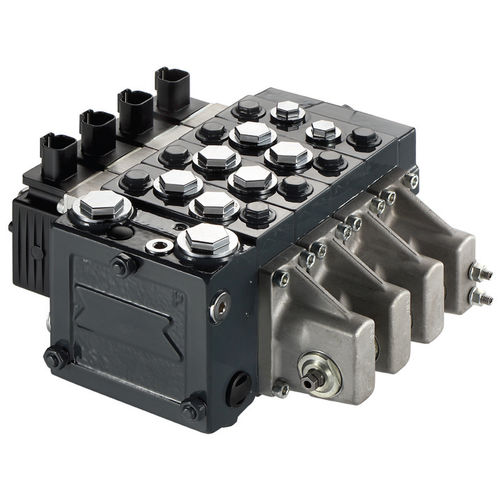

spool hydraulic directional control valve
PVG 16 Danfoss Power Solutions

{{requestButtons}}

Characteristics

  • Type:

    spool

  • Flow rate:

    Min.: 0 l/min (0 us gal/min)

    Max.: 65 l/min (17 us gal/min)

  • Operating pressure:

    400 bar (5,802 psi)

Description

Low-flow PVG 16 covers simple to complex needs. Proven technology and components for customized valve stacks.
Benefit from load-sensing functionality made for the low-flow segment.
PVG 16 optimizes productivity, lowers total system costs and facilitates fulfillment of emissions and safety regulations.

Use with the PVE Series 6 actuator for seamless integration in advanced electrohydraulic systems.

Machine Benefits

Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system life.
Optimized system architecture due to design flexibility and modular concept
Improved efficiency obtained by precise matching of performance with flow requirements
Reduced cooling and fuel requirements
Product Features

Flow rating up to 65 l/min [17.2 US gal/min]
Work port pressure up to 400 bar [5,800 psi]
Optimized spool design for progressive or linear flow
Float capability for increased safety
Actuator with closed loop control for built-in fault monitoring
