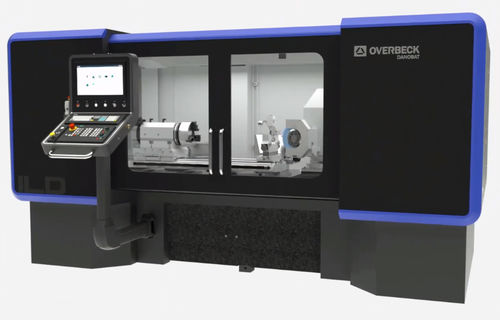

Internal cylindrical grinding machine ILD
workpieceCNClarge

internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
internal cylindrical grinding machine
Add to favorites
Compare this product


Characteristics

Type
internal cylindrical
Applications
workpiece
Control type
CNC
Other characteristics
high-precision, large, direct-drive, with linear motor, four-spindle, universal
X travel

420 mm, 450 mm, 700 mm
(17 in, 18 in, 28 in)

Description

The ILD machine can handle all these challenges —and more— with a single platform. This is internal universal The ILD specialises in grinding a wide variety of large, long or heavy workpieces with fast changeovers. These include: Spindle shafts Spindle housings Unbeatable vibration dampening and accuracy A base made of natural granite Linear motors Highly sensitive process and temperature monitoring Two technologies that make the ILD unique The B0 axis is driven by a servo motor and is designed with an encapsulated, backlash-free gearbox and toothed belt To maintain the highest accuracy for all sizes of workpieces, the W axis is equipped with high precision linear guides Powerful software developed by grinding experts Display different software applications at the same time Create machining processes with ready-to-use standard cycles, such as non-round, thread, and jig grinding Touch screens and ergonomic design Workheads and B0 axis Three different workhead sizes are available to suit your needs. The result is a highly flexible, modular system that can be tailored to meet the exact needs of any application. Direct driven spindle turret Direct driven spindle turret with 300° swivelling range and the capacity for up to 4 spindles and one measuring probe. Clamping system Three jaw chuck (automatic or manual) Magnetic chuck Shoe system Steady rest Tailstock Customised chuck Dressing system Fixed dresser Dressing spindle Radius dresser Dressing revolver Workhead mounted dresser Roller dresser Measuring system Touch probe In-process measurement Post-process measurement Tool measuring device

VIDEO

Exhibitions

Meet this supplier at the following exhibition(s):

BIEMH 2024
BIEMH 2024

3-07 Jun 2024 Bilbao (Spain) Hall 1 - Stand C-09
