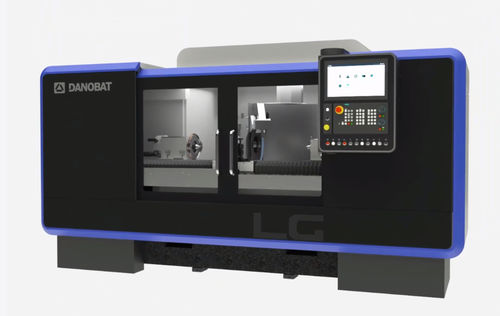

External cylindrical grinding machine LG

for shaftworkpieceCNC

Features like a direct drive spindle and a wheel head driven by a zero backlash torque motor make the LG ideal for high volume and flexible batch production. Blistering production rates with wheel speeds up to 120 m/s For machining small to medium-sized components Uses CBN, diamond, and conventional abrasives, in combination if needed Achieves a maximum peripheral grinding wheel speed of 120 m/s Complete machining of your part in just one set-up The LG can perform different grinding and measuring operations in a single set-up, increasing the productivity of the machine. External diameters, faces, tapers, non-round shapes, etc. in one clamping. Enjoy the shortest changeover times Auto set up cycle for dressing a new straight grinding wheel Automatic wheel changing cycle Z axis reference block for wheel touch offset reference to avoid manual setting Tailstock quill ranges from 80 to 170 mm Tailstock axes with strokes of up to 600 mm are available We do machining tests on your parts We offer application engineering services to find the best grinding solution for your production requirements, and to design the most suitable machining process for your part. Wheel head configurations From straight (S) or angular (A) infeed types to a full swivelling wheel head B axis that can hold several configurations to provide the most flexible grinding solutions. Dressing system Fixed dresser Dressing disc spindle Dresser at workhead Roller dresser Clamping system Three jaw chucks Customised chucks Hydraulic chucks Tailstock Manual and hydraulic tailstocks Synchronous tailstocks Taper adjustment Measuring system Touch probe In-process measuring Post-process measuring
