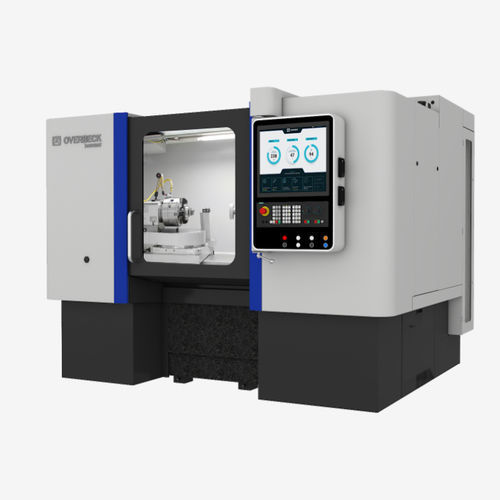

External cylindrical grinding machine IRD

internal cylindricalworkpieceCNC

A versatile all-rounder, that performs many processes (such as ID, OD, radius, non-round) within the highest precision. Leaders in high precision machining The experience of machining hard metal, ceramic parts and bearings, among others, has given us the solid knowhow needed to develop high precision solutions. What makes the IRD an all-rounder? A wide range of workheads and grinding spindles, plus clamping, dressing and measuring systems, are available Complete workpiece machining, including internal, external, face and radius grinding Elimination of multiple set-ups for maximum precision One of the most robust machines on the market The IRD is the grinding machine for the most demanding materials, such as carbide, steel, and ceramics. Due to the machine’s robustness, you will meet the tightest tolerances and achieve the best surface quality. Powerful software developed by grinding experts Display different software applications at the same time Create machining processes with ready-to-use standard cycles, such as non-round, thread, and jig grinding Touch screens and ergonomic design Direct driven spindle turret Direct driven spindle turret with 300° swivelling range and the capacity for up to 4 spindles and one measuring probe. Workheads and B0 axis Different workheads depending on the weight of the workpiece The B0 axis is designed to help grind high precision parts with very precise shapes and surface finishes, including 3-axis interpolation with the X and Z axes to create part contours Clamping system Three jaw chuck (automatic or manual) Magnetic chuck Shoe system Steady rest Tailstock Customised chuck Dressing system Fixed dresser Dressing spindle
