Characteristics

  • Measured entity:

    particle

  • Measured value:

    spectrum, flow

  • Configuration:

    benchtop

  • Other characteristics:

    monitoring, real-time, calibration, FFT

Description

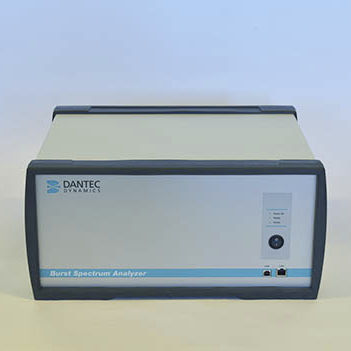

The Burst Spectrum Analyzer (BSA) is a fast & powerful all-in-one processor for LDA & PDA systems. Using the latest developments in signal processing technology, this processor offer the flow measurement and particle sizing community a breakthrough in both top signal input frequency and bandwidth range allowing measurements in the most difficult application regimes. The BSA is powerful, fast and better than ever featuring

• Robust signal processing using multi-bit FFT for superior accuracy
• Highest velocity measurement capability thanks to an input frequency of up to 200 MHz
• Widest velocity range measurements with bandwidths of up to 160 MHz
• Easy setup/connection with only few cables due to new built-in detection unit
• Convenient choices for PC connections including LAN, USB or Wi-Fi
• On-line, real-time monitoring of Doppler bursts, spectra, data rate, and validation
• Automatic over-current protection prevents damage to photomultipliers (PMs)
• Completely automatic PDA phase calibration whenever needed

Powerful & fast

The BSA comes in two series: The BSA (Flow) F-series for LDA systems – and the BSA (Particle) P-series for PDA solutions. Both series are available in two performance levels. The powerful F/P 600 series is recommended for most standard applications, whereas the high performance F/P 800 series is required for the most demanding and challenging (typically high velocity/supersonic) measurement applications.
