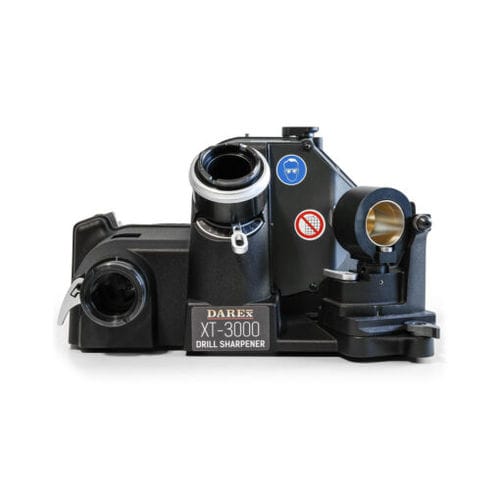

Tool grinding machine XT-3000

manually-controlled

The XT-3000 Drill Grinder and Sharpener is a workhorse sharpener which can be expanded to meet a variety of sharpening needs. If you want the right point for the job, but don’t want to become a tool and cutter grinding expert, the Darex XT-3000 is for you. You can sharpen in house for only pennies a drill. Assembled in the USA from US and imported parts. 30 day trial available – If you are not satisfied with your sharpener within 30 days of receiving it, contact us to initiate a return and all you pay is shipping. We want to be sure you get a product you love! **30 day trial only available for purchases made directly through Darex IND, INC. 3rd party purchases are subject to the seller’s policies. XT-3000 BASE UNIT SPECIFICATIONS: Ideal For: Shops that sharpen a variety of drill sizes and styles and want the advantages of a highly advanced manual drill and tool sharpener Acceptable drill diameter: 3mm (.118, 1/8inch) – 21 mm (.826, 13/16 inch) Acceptable drill length: Unlimited maximum, two inch minimum. Duty Rating: Heavy duty Grit Removal System: Optional vacuum Cutting Tool Diameter: 1/8 inch – 13/16 inch (3–21 mm) Operation Mode: Manual Machine Weight: 68 lbs (31 kg) Point Angles Sharpened: 118°–150° (90° option available) Machine Size: 20″ x 20″ x 16″ (51 x 51 x 41 cm) Point Styles Sharpened: Standard conic and split point Sharpening Wheel Included: Borazon (CBN) for HSS & cobalt (diamond option for carbide available) Power: 2.5 amps at 115V, 1.6 amps at 230V; 1/4 hp (for international machines) Options Available: Large drill attachment (21–30 mm) XY Table attachment Countersink attachment Brad point attachment Step drill attachment
