web server / DIN rail / Ethernet
DAT8015 DATEXEL SRL

Add to MyDirectIndustry favorites
web server / DIN rail / Ethernet web server / DIN rail / Ethernet - DAT8015
{{requestButtons}}

Characteristics

  • Type:

    web

  • Mounting:

    DIN rail

  • Other characteristics:

    Ethernet

Description

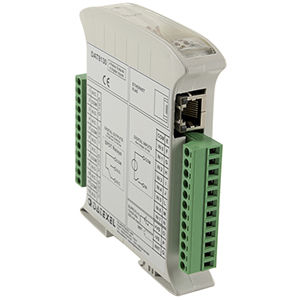

The DAT8015 module is a Modbus TCP server unit that can convert up to 8 analog signals applied to the input in engineering units in digital format.
The inputs can be connected to sensors with current or voltage output.
The input channels are electrically isolated from each other.
For each input channel is provided an isolated power source for the power supply of passive sensors.
The device guarantees high accuracy and a stable measure versus time and temperature. In order to ensure the safety plant, the device is provided with a Watch-Dog Timer system. The Ethernet interface allows reading and writing in real time the values of the internal registers of the device.
The LEDs of signalling of Ethernet activity and power supply allow a direct monitoring of the system functionality.
