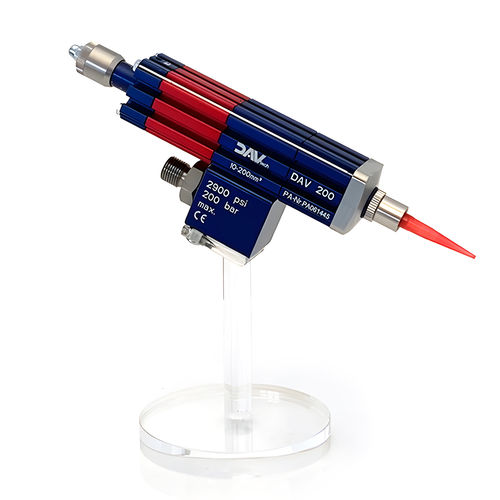

Volumetric dispensing valve DAV 200

precisiongreaselubricant

The metering valve DAV 200 is designed to dispense with the highest accuracy and repeatability greases and lubricants to NLGI 3 (1,000,000 mPa s). The chamber has a volumetric capacity adjustable from 10 to 200 mm ³ ​​(0.01 to 0.2 cc) and with a special sensor is possible to check the emptying of the dosing chamber, for the highest control of the assembly process. FIELDS OF APPLICATION: > Grease metering > Lubricants metering FEATURES: > Volumetric dosing, reliable and constant > Dosing independent of viscosity, pressure and temperature of the lubricant > Pressure control system not necessary > Dosing objectivable with a sensor > Quantity dispensed easily adjustable and that can’t be changed accidentally using the block screw > Small and Light (170 g) > Available on request in version for low feed pressure.
