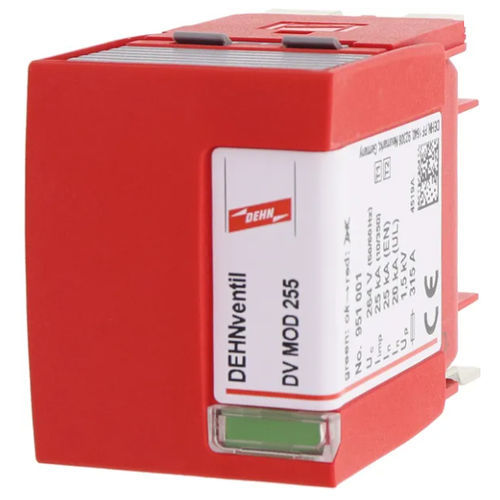

Type 2 surge arrester DV MOD 255,DV MOD NPE series
type 1for power suppliesfor electrical installations

type 2 surge arrester
type 2 surge arrester
type 2 surge arrester
type 2 surge arrester
Add to favorites
Compare this product


Characteristics

Type
type 2, type 1
Applications
for power supplies, for electrical installations
Other characteristics
with fault indication, modular, plug-in
Voltage

255 V, 264 V

Primary current

25,000 A, 50,000 A, 100,000 A

Description

High discharge capacity due to powerful creepage discharge spark gap Maximum system availability due to RADAX Flow follow current limitation Easy replacement of protection modules without tools due to module locking system with module release button Operating state / fault indication by green / red indicator flag in the inspection window The plug-in protection module can be replaced without the need to de-energise and without removing the distribution board cover
