Threaded dew-point transmitter HD4 series

12VAC24VAC24 Vdc

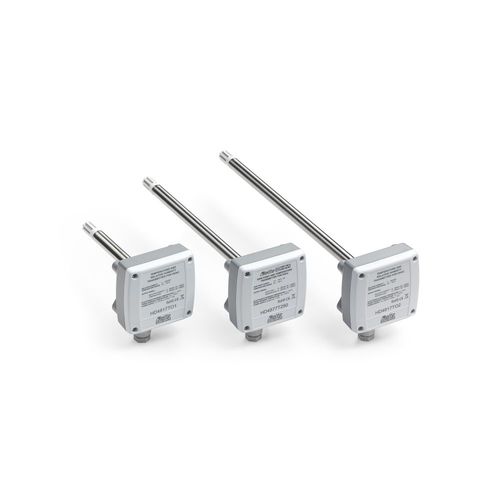

HD48 transmitters are designed for temperature and humidity control in conditioning and ventilation applications (HVAC/BEMS) in the following sectors: pharmacy, museums, clean rooms, ventilation ducts, industrial and civil sectors, crowded places, canteens, auditoria, gyms, high-density farms, greenhouses, etc. The models of the HD48.. series are active transmitters and accept both direct and 24Vac alternating power supply; they have standard current (4…20mA) or voltage (0…10V) outputs, or a serial RS485 output*, depending on the model. Available models: horizontal probe for duct mounting (TO), vertical probe for wall mounting (TV), probe with 2 or 5 m cable (TC), fixed contact Pt100 probe for solar panel (TFP) For the TO and TC versions, two probe temperature ranges are possible: standard -20…+80 °C and extended -40…+150 °C (option E). Temperature range of the thin film 1/3 DIN Pt100 probe for solar panel: -40…+85 °C. Also available with LCD display (option L). Electronics working temperature: -20…+60 °C.
