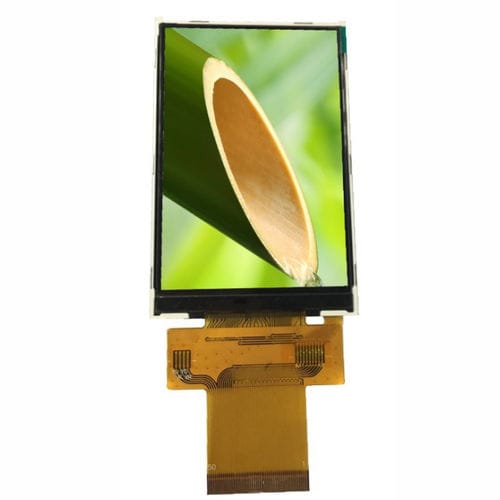

TFT display module DMT035QWNXNT0-1AIPS320 x 4803.5"
Add to favorites
Compare this product
Characteristics
- Type
- TFT, IPS
- Format
- 320 x 480
- Screen size
- 3.5"
- Applications
- industrial, for medical equipment
- Other characteristics
- RGB, SPI
- Width
83.57 mm
(3.2902 in)- Height
54.58 mm
(2.1488 in)
Description
Shape
Rectangular
Wide Angle Viewing
Yes
Touch Panel
No
Display Tec
IPS
Evaluation kit available
Yes
Range
TFT Displays
Sector
Medical, Security, Test and Measurement
Display
Brightness
600 cd/m²
Operating Temp Max
70°C
Operating Temp Min
-20°C
Viewing Angle
80/80/80/80
Dimensions
Dimensions Depth
2.10 mm
Dimensions Height
54.58 mm
Dimensions Width
83.57mm
Mounting and Connectivity
Interface
MPU, RGB, SPI Serial
Mechanical Mounting
Display
HMI
Multitouch
No
