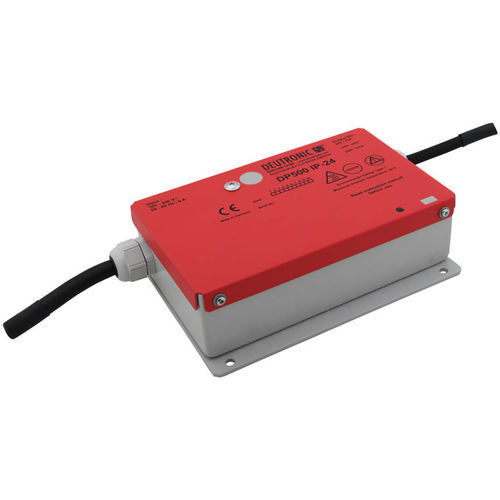

AC/DC power supply DP500IP/3-24
with short-circuit protectionwith surge protectionwith overload protection

AC/DC power supply
AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Protection
with short-circuit protection, with overload protection, with surge protection
Certifications
CE
Features
compact, encapsulated
Protection class
IP67
Other characteristics
robust
Input voltage

Min.: 380 V

Max.: 500 V

Output voltage

24 V

Current

20 A

Power

500 W

Description

Compressed packing density, easy installation, no additional housing and/or control cabinet required, Plug&Play, no external cooling (contact cooling over the base plate), little effort and cost saving No inrush current: Less safety measures are needed, no load of the switch and safety installations thanks to an active limitation of the inrush current It can be directly installed at home; no long supply lines, therefore no drop. Active-PFC Electrical safety: EN61204-7, EN 50178 Certifications: UL508 listed, enclosed type (E204957) CSA C22.2 No. 107.1-01 EMC: EN55011 Class B, EN61000-6-2 Very low stand-by-power, high efficiency No inrush current
