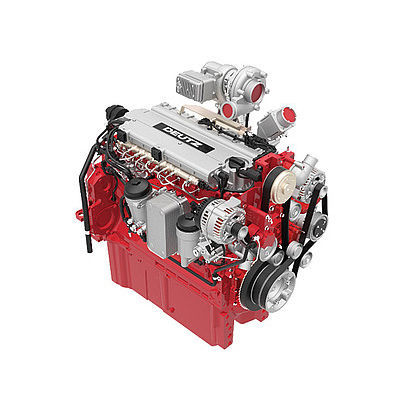

Diesel engine / 6-cylinder / common rail / for agricultural applications
TCD 6.1 series DEUTZ


  • Type:


  • Number of cylinders:


  • Technology:

    common rail

  • Product applications:

    for agricultural applications

  • Other characteristics:

    compact, water-cooled

  • Power:

    Min.: 120 kW (160.92 hp)

    Max.: 211 kW (282.96 hp)

  • Rotational speed:

    2100 rpm (13194.69 rad.min-1)


These six-cylinder inline engines are water-cooled and feature two-stage turbocharging, which comes with cooled external exhaust gas re-circulation technology from US EPA-Tier 4 – EU Stage-IV. With optimized engine and exhaust after-treatment, or EAT, the engines offer high efficiency for the total system and allow for minimized operating and fuel costs.

These units have highly compact designs featuring a modular system and structural oil pan as well as optional add-on parts to increase the number of processes they are capable of. At the front end and flywheel, the power take-off is 100% and the DEUTZ Common Rail injection technology and the engine control unit (EM4) helps to optimize performance without consuming a lot of oil.

The changeover of existing engine installations is facilitated with the compact design, dimensions and connectivity of these engines.
