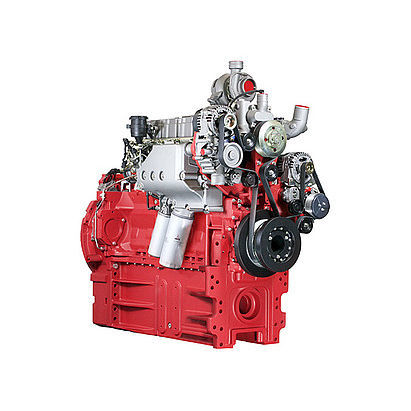

Diesel engine TCD 2013 L4 2V (Agri)
6-cylinder4-cylinderturbocharged

diesel engine
diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
6-cylinder, 4-cylinder
Technology
turbocharged, common rail, in-line
Product applications
for agricultural applications
Emissions level
Tier 3, Euro 3
Other characteristics
liquid-cooled
Power

129 kW, 200 kW, 262.5 kW
(175.391 hp, 271.924 hp, 356.901 hp)

Torque

670 Nm, 1,050 Nm, 1,310 Nm
(494.1666 ft.lb, 774.4403 ft.lb, 966.2064 ft.lb)

Rotational speed

Max.: 2,300 rpm
(14,451.33 rad.min-1)

1,600 rpm
(10,053.1 rad.min-1)

Min.: 650 rpm
(4,084.07 rad.min-1)

Displacement

4.8 l
(1.268 gal)

Weight

500 kg
(1,102.31 lb)

Length

857 mm
(33.7 in)

Width

638 mm
(25.1 in)

Height

870 mm
(34.3 in)

Description

Engine for agricultural machinery. Modern, liquid-cooled 4-cylinder in-line engine. Powerful, rugged engine providing high power density PTO facilities integrated in geared drive Electronic engine control with intelligent adaptation to drive management High-pressure fuel injection with DEUTZ Common Rail System (DCR®) 4-cylinder optional with mechanical injection pump up to 104 kW
