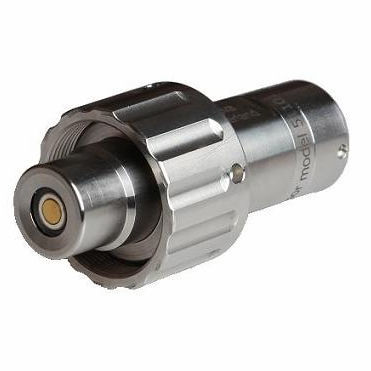

Electrochemical oxygen sensor 51101

in-line

This electrochemical oxygen sensor is ideal for high-precision measurements in both dissolved and gaseous phases. Built in stainless steel, the sensor is ideal for harsh chemical conditions and high pressures. The measurement range varies from trace to saturation level (0.1 ppb to 400 ppm). Its concept and precise mechanical assembly ensure an optimal performance, a long life cycle and low maintenance costs. Detection limits < 0.1 PPB (dissolved) or 0.5 PPM (v/v) gaseous Low maintenance costs: • Interchangeable anode/electrode: can be changed in few minutes at low cost • Minimal membrane surface in contact with the sample reduces maintenance frequency • Large anode surface: the anode is less quickly consumed by the electrochemical reaction and must thus be changed less frequently Easy calibration process (only 1 point needed): an Eeprom stores the calibration parameters and avoids recalibration process if the sensor is connected to another Dextens instrument Temperature sensor is integrated in the cathode assembly, enabling a faster temperature reading Protection cap with special surface treatment: the sensor is very hygienic Stainless steel construction: ideal for harsh chemical conditions and high pressures In-line, portable and package analysis Dissolved and gaseous applications Beverage production Semiconductor, power-steam industries Pharmaceutical and chemical industries
