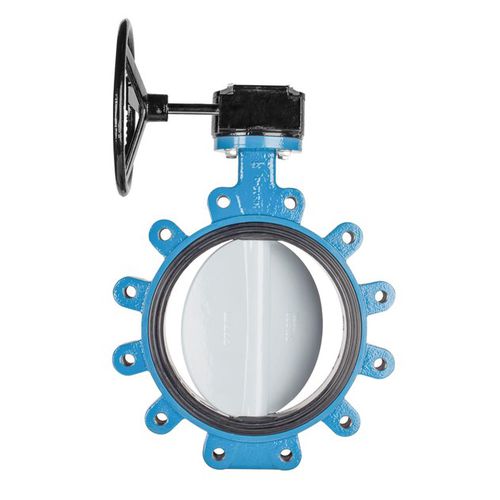

Butterfly valve BOS-CL
with handwheelwaferlug type

butterfly valve
butterfly valve
butterfly valve
Add to favorites
Compare this product


Characteristics

Type
butterfly
Operation
with handwheel
Body
wafer, lug type, seat, rubber
Other characteristics
high-performance
DN

Max.: 24 in

Min.: 2 in

Pressure

150 psi, 175 psi

Temperature

121 °C
(250 °F)

Description

DeZURIK On-Center Resilient Seated Butterfly Valves (BOS-CL)Design Features:BOS-CL Resilient-Seated Butterfly Valves are designed to handle a wide variety of liquids and gases. BOS-CL valves feature an on-center disc; one-piece body; high-performance resilient seat bonded to a solid backing ring, three heavy duty bearings, and a blow-out proof shaft to the full valve rating; dead end service with downstream flange attached. BOS-CL valves have bi-directional bubble-tight shutoff to the full valve rating; dead end service with downstream flange attached.
