Optical connector MICRO AVIM™

PCBDMIlocking

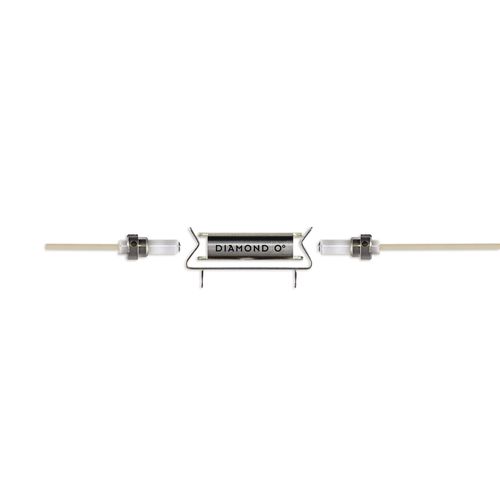

In order to ensure the highest technical performance and to provide an optimum solution for high density packaging, DIAMOND has developed the Diamond Micro AVIM® based on the DMI, but with titanium components.The Micro AVIM® is identical to the Mini AVIM® in terms of termini, but uses different locking mechanism. Thanks to its minimal space requirement, this system is an ideal solution for Printed Circuit Board (PCB) applications as well as a high quality interface between active and passive components of fiber optic installations. As such it has been used to replace splices, in some applications, improving the modularity at a low height budget impact. Micro AVIM® connectors are based on standard ø2.5 mm ferrules and are designed to operate with multimode and single mode fibers, 0° PC as well as 8° APC polished. Features and benefits • Minimum space requirement (footprint of 4.5 x 21 mm) • Consistent high performance solution • Available in PC, APC and PM termination • Available in PS on custom request due to laser safety issues • Standard active fiber core aligned DIAMOND ø2.5 mm ferrule • Easy installation by use of standard clip-on system • DMI assembly tool is available
